Modules

An optimal membrane is the paramount requirement for a working separation process. However, the entire membrane capacity can only be achieved, if the module construction considers the flow conditions adequately. Not till then the expected separation results will be accomplished.

Besides standard spiral wound modules, which are state-of-the-art in liquid processes, GMT has membrane modules available, which allow excellent separation results due to the appropriate design of the flow conditions.

Spiral wound modules for treatment of organic liquids

Size: 2,5“, 4“, 8“ x 40“
Feed flow: 2 m³/h – 30 m³/h

Envelope-type module for organophilic nanofiltration

Max. pressure: 40 bar
Max. temperature: 150 °C
Feed flow: from 0.5 m³/h
Special properties:

  • No feed spacer
  • No glue
  • Very short permeate distances
  • Feed flow adjustable by compartment configuration

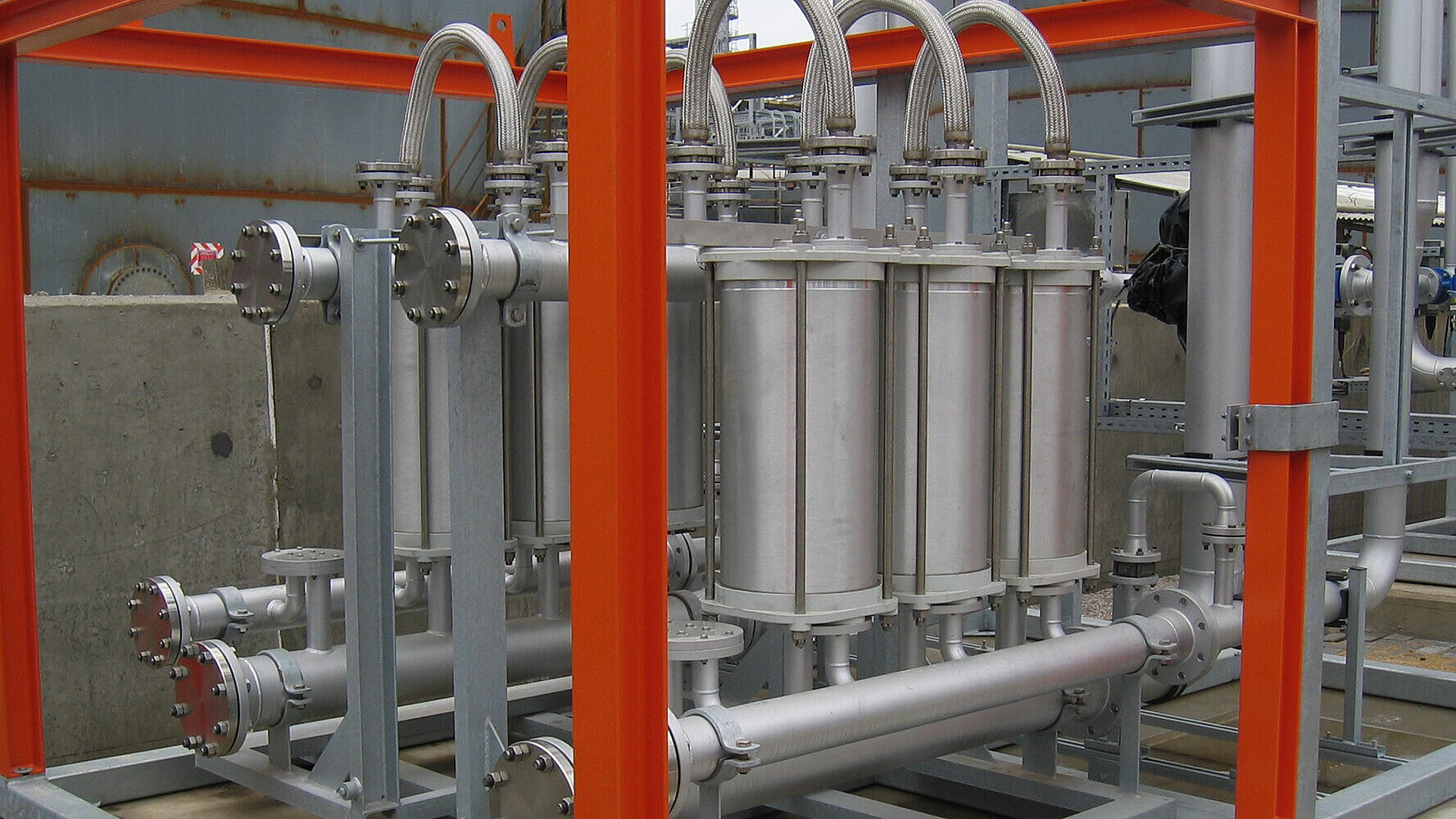

Envelope-type module for gas separation

Pressure range: 4 – 100 bar
Material: Aluminium and stainless steel according to
required standards
Special properties:

  • No glue
  • Very short permeate distances
  • Feed flow adjustable by compartment configuration
